Atlantic Water Gardens 1 1/2″ – 2″ Universal Check Valve


$69.99

Atlantic Water Gardens 1 1/2″ – 2″ Universal Check Valve

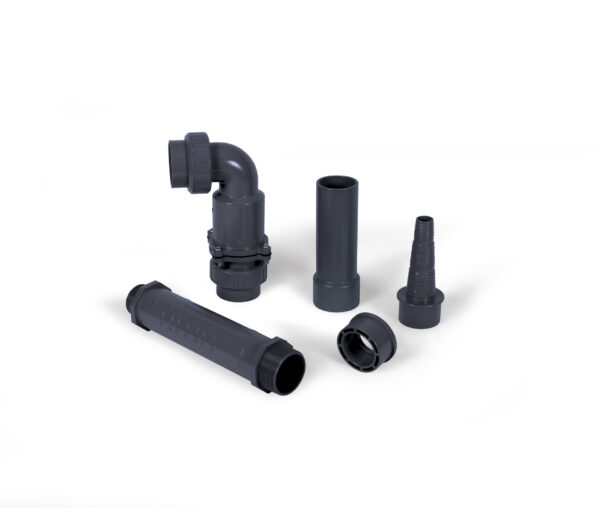

Atlantic’s award winning Triton Check Valve is the only check valve designed exclusively for the water garden industry. The ‘swing style’ Triton Check Valve features a 2-inch socket union on the inlet, 2-inch and 1.5-inch socket unions for the outlet, a molded-in 90 degree elbow, and a slim design that allows clearance when installed with direct drive pumps. If simplicity and innovation are what you?seek, Triton delivers! The TR215CV features a flow flow swing valve with inlet and outlet unions and a replaceable gasket, and includes discharge fittings for 1.5-inch and 2-inch PVC pipe and 1 – 1.5-inch tapered insert fitting for metric and ASTM standard tubing. The reversible discharge pipe will work with all 1.5-inch and 2-inch discharge TidalWave pumps and Atlantic equipment. The molded “perfect-cut” dimensions to identify proper lengths for Atlantic products and cut-to-fit 1” increments on the reverse side. For taller Atlantic equipment, use the included discharge extension. The maximum assembled height is 23” (from the pump discharge to the center of the outlet pipe), but can be extended to any length using 2-inch Sch 40 pipe and fittings.

SPECIFICATIONS
Valve Dimensions:5.625″L x 3 .5″ W x 10″H
Inlet:2″ socket
Outlet:1.5″ or 2″ MIPT
Pipe Dimensions:11.875″L x 2.625″W
Inlet:1.5″ or 2″ MIPT
Outlet:2″ Sch 40 pipe
Includes:2″ check valve with unions, 1.5″ outlet fitting, 1″ thru 1.5″ tubing adapter, discharge pipe and extension
SKU: TR215CV Categories: , Tag:
Weight2.8 lbs
Dimensions12 × 8 × 4 in
