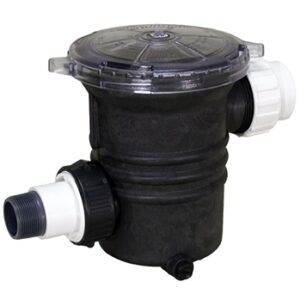

Sequence Primer Alpha Series 7800 GPH Pump


For larger systems, we offer the Sequence Primer Series. With an over-sized, integrated 250 cubic inch basket strainer, this unit is also self-priming. The high efficiency enclosed impellers ensure low cost, high flow performance for many years.All Sequence Primer Series pumps come with Baldor® motors, 8 foot cord with 115V molded plug and stainless steel hardware. All Sequence Primer series pumps are covered by our 3-year warranty. The Sequence Primercan be wired for 115V or 230V.Out-of-pond construction – NOT Submersible!
Ports are 2″ FNPT suction and 2″ FNPT discharge.
Units are pre-wired with an 8′ cord and molded 115V plug.
Housing is molded of high strength, glass filled polypropylene.
Quiet operation.
250 cubic inch integrated strainer basket
Dry run resistant mechanical seals.
Stainless steel hardware is standard.
The motors are TEFC, for excellent protection.
Rebuildable, industrial grade motors.
Three year limited warranty!Max Flow: 7,800 GPH
Max Head: 24′
Watts: 504
Amps: 5.02
Volts: 115
Discharge Outlet: 2″ Uniion or FPT
Inlet: 2″ Uniion or FPT
Cord Length: 8′
Warranty: 3 Years

Weight55 lbs
Dimensions23.75 × 10 × 15.53 in
